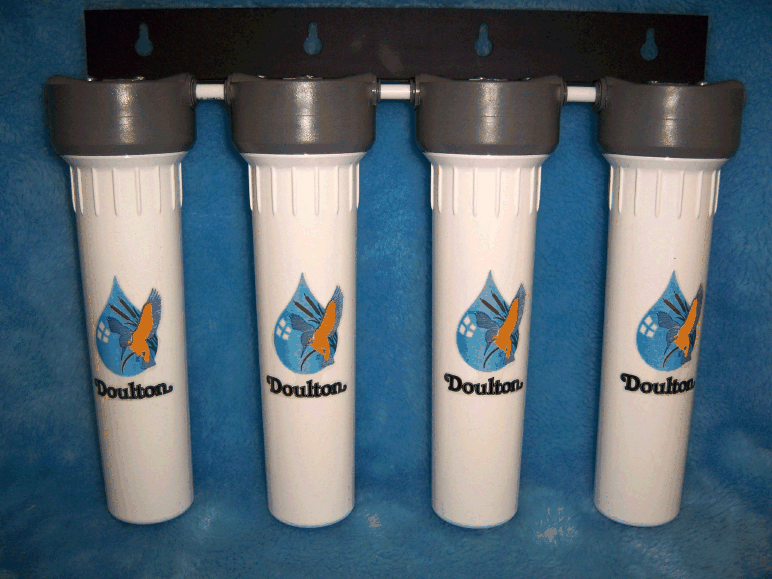

HIP400 - Four Housing Under Counter
Ultimate #1 Rated System - Plus Fluoride
This system is the highest rated design for Do It Yourself (DIY) under counter installation.

This system includes: Four (4) HIP100 Housing assemblies; MKU100 Mounting Kit, a cleanable CU1200 UltraCarb Ceramic for the first housing, disposable: FL3500 Fluoride, then a CR2500 VOC/Heavy Metal cartridge and a CM1500 High Volume VOC for the fourth (see performance chart below).

To clean, service or replace either the CU1200 ceramic or FL3500/CR2500/CM1500 disposable cartridges, the "sump" (white section) is simply unscrewed. The sump is pressure sealed with an "O" ring, therefore no tools are required to loosen or tighten the sump into place. Hand pressure is sufficient. Flow rate is .5GPM@30PSI. For detailed installation and service instructions please refer to the Installation and Users Guide

HIP400 - Application Guide and Contaminant Removal Chart
CU1200 UltraCarb Ceramic, FL3500 Fluoride, CR2500 VOC/Heavy Metal Cartridges & a CM1500 High Volume VOC Combination

P= Purification. R= Reduction> 95%. F= Effective Filtration

Contaminants Removal Rated Life in Imp Gal for this configuration: CU1200-1000G, FL3500-600G CR2500-600G, CM1500-1000G
Bacteria P General Description -

This system is designed for homes fed by well, surface or Chlorinated Municipal water which has been treated with Fluoride. It is effective for plumbing systems constructed with soldered copper, PVC, galvanized or black iron pipe. This system is highly effective for homes which are fed by lead lined or asbestos concrete reinforced water supply mains in their city.

This cartridge combination provides: 100% rejection of Bacteria and Cysts; Depth filtration of particulate >.2 micron (dirt, asbestos, iron etc); outstanding improvement in Taste and Odor; increased Chemical, Lead and Heavy Metal Rejection; plus the added bonus of Fluoride reduction. The CR2500 maintains it's 600 gallon (720 G/US) rating to ensure that the reduction medium remains effective against Lead and Heavy Metals under the worst possible contaminant conditions.

Strengths: Reaching purification standards for all VOC and inorganic contaminants, this system produces outstanding rejection of contaminants with the added bonus of increased life while maintaining a Chlorine and Lead removal efficiency(>99%). Both of these statistics exceed the NSF certification requirements under NSF International Standards 53. The system is easily cleaned and requires no tools to service.

Order Button
Cysts P
Taste P
Odors P
Colour P
Chlorine P
Herbicides P
Pesticides P
Lead P
Metals P
Fluoride F
Nitrates NA
Arsenic NA


Dimensions Height Width Depth
Imperial 14 in 17 in 4 in
Metric 35.6 cm 43.2 cm 10.2
