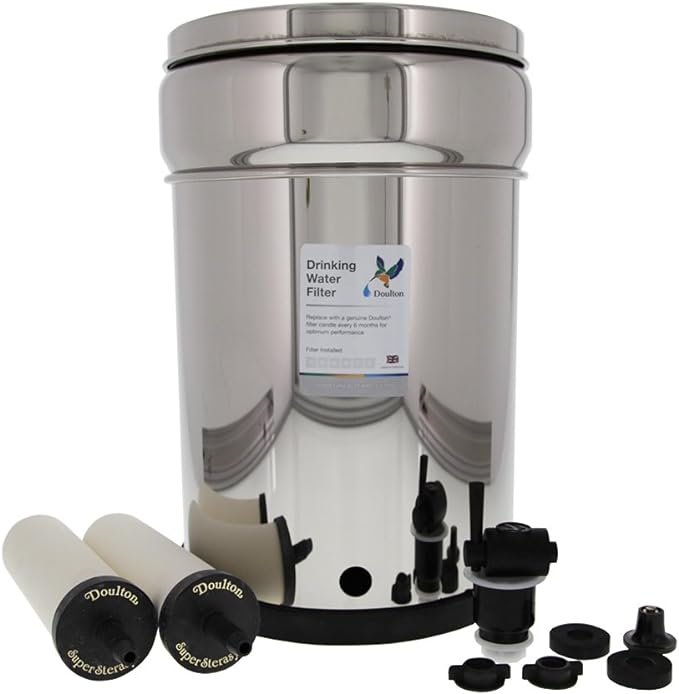

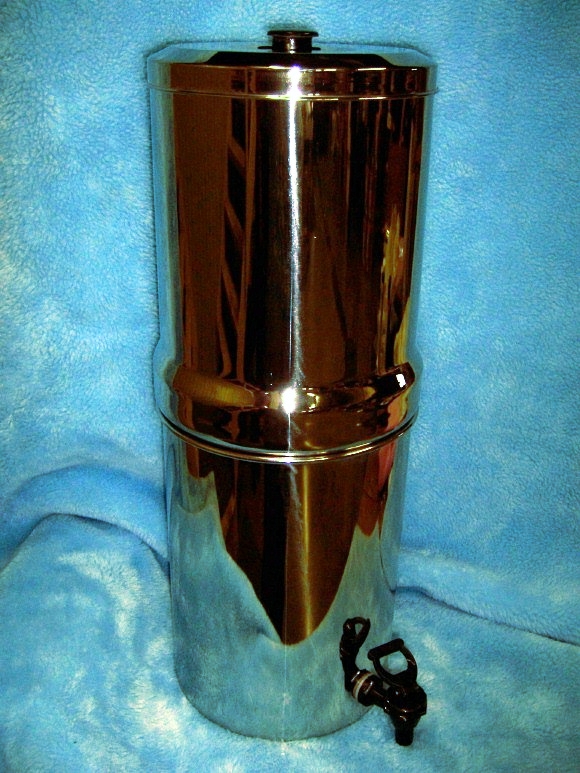

GSSHM2- Gravity Stainless Steel Doulton Water Filter
The Doulton GSS housing is manufactured from polished stainless steel. It comes with two
7" CS07HM Ultra Sterasyl Ceramic Doulton water filter candles. The upper chamber is filled with water which then gravity feeds through the Doulton ceramic water filter candles into the lower chamber. An easy to
use spring loaded spigot is used as the outflow tap.
CS07HM 2 stage "Ultra Sterasyl" Doulton water filter candles are the recommended cartridges for gravity systems that are used in municipal and rural applications that require lead and heavy metal reduction capabilities.
This unit is simple to assemble and requires no specialty tools (screwdriver only). The outflow spigot and upper chamber lid knob are the only items to be installed by the purchaser. Assembly time is approximately 5 minutes. Detailed instructions are provided.
This is also an outstanding portable drinking water filtration system which is also perfect for travelers, boaters, recreational vehicle owners or as an EMERGENCY WATER PURIFIER. It may be stored un-used in homes, businesses, automobiles, etc. indefinitely. It is always ready for use!
Doulton Application Guide and Contaminant Removal Chart
CS07HM Ultra Sterasyl ATC Ceramic Doulton Water Filter Candle
P= Purification >99% R= Reduction> 95% F= Effective Filtration
| Contaminants | Removal | General Description -Rated life 1000 Imperial Gallons per candle (max four) |
| Bacteria | P | Application: Gravity fed, this Doulton water filtration system is designed for use where either portability is required or access to a pressure fed water source is
impractical.
Volume: With two Doulton ceramic water filter candles installed, this unit can produce more than ten US gallons (40 litres) of drinking water per day. Strengths: This "Free Standing" portable gravity fed system provides 100% rejection of bacteria, cysts and effective depth filtration of particulates >.5 micron. This system also provides excellent rejection of Chlorine and VOC's, heavy metals and lead. The multiple candles are easily cleaned and require no tools to service.
These statistics meet or exceed the NSF certification requirements under NSF International Standard 42 and 53. |
| Cysts | P | |
| Taste | F | |
| Odors | F | |
| Colour | F | |
| Chlorine | R | |
| Herbicides | F | |
| Pesticides | F | |
| Lead | R | |
| Metals | F | |
| Fluoride | NA | |
| Nitrates | NA | |
| Arsenic | NA |
| Doulton Technical Details |  |
Telescoped for Shipping |
|||
| CS07HM Doulton Ceramic Candles | 2 | 4 | |||
| Capacity (litres) | 9 | 9 | |||
| Output / 24 hours (litres) | 40 | 80 | |||
| Height (mm) | 490 | ||||
| Width (mm) | 210 | ||||
| Empty Weight (kg / lbs) | 2.5 / 5.5 | ||||
