Drinking Water Filter Product Catalogue
|
Introduction: Detailed Product Data Sheets with technical specifications, colour photos, and individual contaminant removal efficiency charts, are available for each of our drinking water filter products shown in the catalogue. The link to the Product Data Sheet is made by selecting the product Part Number (#) on the far left side. These are the Part#s used on the price lists and order forms as well. Links to the Product Data pages are also included in the On-Line Shopping Forms and the "At-A-Glance" Product Selection Chart mentioned above.
Product
Catalogue Index:
Part 1:
Pressure Systems - Counter Top Point Of Use (POU) Doulton Ceramic Drinking Water Filters
Part 2: Pressure Systems - Under Counter Point of Use
(POU) Doulton Ceramic Drinking Water Filters
Part 3: Pressure Systems - Whole House Point of Entry (POE)
Doulton Ceramic and Pre-Filter Water Treatment Systems
Part 4: Gravity Systems - Counter Top, Travel, Emergency
(POU) Doulton Ceramic Drinking Water Filters
Part 5: Replacement
Doulton Ceramic Filters / Cartridges, - Doulton Ceramic and Specialty Filter Cartridges
Part 6: Shower Systems for Chlorine Reduction
Part 7: Misc Individual Components
(Hose, O-Rings, Faucets, Housings, Valves, etc.)
Part 8: John Guest Hose Fittings
Note 1: Part Number (#) CU1200 Doulton UltraCarb Ceramic Drinking Water Filter Candles are three stage cleanable filtration cartridges, designed to remove suspended solids, pathogenic bacteria, chlorine, organic chemicals, hydrogen sulphide, heavy metals and lead in drinking water. In addition they will improve taste and reduce odours. Doulton and H2O International cartridges are available to fit Doulton water filter housings, British Berkefeld housings, Pristine Water Filters, and a host of other manufacturer's housings. For example; in the product catalogue, a 'D' has been placed in front of the part numbers that fit Dynamic Stainless Steel counter top and under counter drinking water purifiers and an 'F' for Franke models. If you are not sure of a part number replacement send an email to orders@doulton.ca with the dimensions of your current filter cartridge along with a digital picture and then call our toll free North America Technical Support Line 1-800-439-1671. We will ensure you receive the correct replacement.
Note 2: The British Berkefeld gravity filter systems use Doulton ceramics.
Note 3:The Black Berkey is not sold with a British Berkefeld or Doulton manufactured ceramic candles however British Berkefeld and Doulton ceramics will fit the Black Berkey. British Berkefeld and Doulton are in no way affiliated with the Black Berkey nor the claims they make with regards to their cartridges.
Note 4: Part#s that are not underlined do not have a detailed product data page developed for them
Part 1:
Doulton - Counter Top Drinking Water Filtration and Purification Systems Note: All HCP series counter top water filters can be converted to under counter systems. See MKU100 Mounting Kit listed under Individual Components below. |
||||
Part # | Doulton Ref# |
Description | Application Overview | |
HCP101 | W9331032 | Doulton Counter Top with single CU1200 Ceramic Cartridge - General Purpose Basic System attaches directly to existing kitchen faucet | Basic System | |
HCS101 | W9331208 | Stainless Steel Doulton Single Cartridge Counter Top with single CU1200 Ceramic Cartridge - General Purpose Basic System attaches directly to existing kitchen faucet | Basic System | |
DYN-CT | Dynamic Stainless Steel Dual Cartridge Counter Top with a Doulton Ultracarb CU1200 and either a CR2500 or CM1500 (your choice) as the second cartridge. | Quality City | ||
HCP200 | W9380005 | Doulton Two Cartridge Counter Top system which attaches directly to existing kitchen faucet. Comes with CU1200 Ceramic and CR2500. Quality City System + Lead/Heavy Metal | Quality City | |
HCP210 | Doulton Two Cartridge Counter Top system which attaches directly to existing kitchen faucet. Comes with CU1200 Ceramic and CM1500. Quality Rural System + extended VOC and Lead | Quality Rural | ||
HCP300 | Doulton / H2O Under Counter- 3 Housing system with CU1200, NI3200, CM1500 - Quality Rural System + Nitrates | Quality Rural + Nitrates | ||
HCP305 | Doulton / H2O Under Counter- 3 Housing system with CU1200, FL3500, CM1500 - Quality Rural System + Extended VOC, Lead and Fluoride | Quality Rural + Fluoride | ||
HCP310 | Doulton / H2O Under Counter- 3 Housing, Under Counter system with CU1200, FL3500, CR2500 - Quality City System + Lead/Heavy Metal and Fluoride | Quality City + Fluoride | ||
HCP320 | Doulton Counter Top - Three Cartridge with CU1200, CR2500, CM1500 + advanced VOC and Lead/Heavy Metal- | |||
Part 2: Doulton - Under Counter Drinking Water Filtration and Purification Systems |
||||
HIP101 | W9330043 | Doulton Under Counter- 1 Housing, Under Counter system comes with CU1200 Ceramic - General Purpose Basic System | Basic System | |
HIS101 | Stainless Steel Doulton Under Counter- Single Cartridge, same as above | Basic System | ||
HIP200 | Doulton / H2O Under Counter- 2 Housing, Under Counter system with CU1200, CR2500 - Quality City System + Lead/Heavy Metal | Quality City | ||
HIS200 | Stainless Steel Doulton/H2O Under Counter- Same as HIP200 above with twin Stainless Steel Cylinders. | Quality City | ||
HIP210 | Doulton / H2O Under Counter- 2 Housing, Under Counter system with CU1200, CM1500 - Quality Rural System + extended VOC and Lead | Quality Rural | ||
HIS210 | Stainless Steel Doulton/H2O Under Counter- Same as HIP210 above with twin Stainless Steel Cylinders. | Quality Rural | ||
HIP300 | Doulton / H2O Under Counter- 3 Housing, Under Counter system with CU1200, NI3200, CM1500 - Quality Rural System + Nitrates | Rural + Nitrates | ||
HIP305 | Doulton / H2O Under Counter- 3 Housing, Under Counter system with CU1200, FL3500, CM1500 - Quality Rural System + Extended VOC, Lead and Fluoride | Rural + Fluoride | ||
HIP310 | Doulton / H2O Under Counter- 3 Housing, Under Counter system with CU1200, FL3500, CR2500 - Quality City System + Lead/Heavy Metal and Fluoride | City + Fluoride | ||
HIP320 | Doulton / H2O Under Counter - 3 Housing, Under Counter system with CU1200, CR2500, CM1500 + advanced VOC and Lead/Heavy Metal | |||
HIP400 | Doulton / H2O Under Counter- 4 Housing, Under Counter system with CU1200, FL3500, CR2500, CM1500 - Ultimate #1 Rated System + Fluoride | Ultimate + Fluoride | ||
HIP410 | Doulton / H2O Under Counter- 4 Housing, Under Counter system with CU1200, AR3000, AR3000, CR2500 - Quality Rural System + Arsenic | Quality Rural + Arsenic | ||
HIP420 | Doulton / H2O Under Counter- 4 Housing, Under Counter system with CU1200, NI3200, CR2500, CM1500 - Ultimate #1 Rated System + Nitrates | Ultimate + Nitrates | ||
Part 3: Whole House Systems (POE) - Pressure System Components inc Ultraviolet Light Systems | ||||
RIO2000 | W9381105 | RIO2000 Doulton Sterasyl Ceramic Candle Six Pack Module with BWH-10 filter housing | ||
RIOMF6 | W9381000 | RIO2000 Replacement Doulton Sterasyl Ceramic Candle Six Pack with mounting module | ||
RIO6PK | W9120145 | RIO2000 Replacement Doulton Sterasyl Ceramic Candle Six Pack - NO Mounting module | ||
ST10PR | Standard #10 Housing. Accepts Doulton Slimline, Imperial and other manufacture cartridges. | |||
BWH-10 | 10 inch full flow Water Filter Housing. Will accept all 4.5inch diameter cartridges | |||
BWH-20 | 20 inch full flow "Whole House" Water Filter Housing with pressure relief and mounting bracket. Will accept all 4.5 inch diameter cartridges. | |||
CM2005 | 20 inch. Carbon block filter for 20 inch. Big White housing, also fits other manufacturers housings | |||
20 inch. Carbon Matrikx filter with Lead Reduction for 20 inch full flow housings. | ||||
PF2001 | 20in. 1 micron pre- filter for 20 inch full flow housing, also fits other manufacturers housings | |||
PF2005 | 20 inch. 5 micron pre- filter for 20 inch. full flow housing, also fits other manufacturers housings. Available in spun polypropylene or pleated paper. | |||
UV8GPM | 8 Gallon Per Minute Filtration System with Ultraviolet Light | |||
UVLAMP | Replacement Lamp for 8GPM. Other sizes also available. Call direct. 1-800-439-1671 | |||
Part 4: Doulton Gravity Fed Water Filtration Systems - These do not require hook-up to a pressured water supply Counter Top, Travel, Emergency, Personal Use | ||||
GSS402 | W9361160 | No Longer Available. Replaced by GSSHM2. However replacement CS0700 Super Sterasyl 7" Ceramic Drinking Water Filter candles remain available. | Rural or Municipal | |
GSS404 | No Longer Available. Replaced by GSSHM4. However replacement CS0700 Super Sterasyl 7" Ceramic Drinking Water Filter candles remain available. | Rural or Municipal | ||
GSSFL2 | W9361132 | Doulton, Portable Free Standing Stainless Steel Gravity Drinking Water Filter System - Complete with two Doulton Cleanable Super Sterasyl 7" Ceramic Drinking Water Filter candles.(CS07FL). This system reduces sediment, bacteria, cysts, herbicides, pesticides, chlorine and a host of other Volatile Organic Contaminants (VOCs). This system also reduces Fluoride. | Rural or Municipal | |
GSSHM2 GSSHM4 |
W9361138 W9361139 |
Doulton, Portable Free Standing Stainless Steel Gravity Drinking Water Filter System - Complete with either two or four Doulton Cleanable Ultra Sterasyl ATC 7" Ceramic Drinking Water Filter candles.(CS07HM). This system reduces sediment, bacteria, cysts, herbicides, pesticides, chlorine and a host of other Volatile Organic Contaminants (VOCs), in addition, this system reduces lead and heavy metals. | Rural or Municipal | |
SSMINI | W9361135 | Stainless Steel Mini 1 Qt Portable Drinking Water
Filter using Doulton 6.5" Ceramic Drinking Water Filter Candle (CS0650) Back in Stock! |
Rural or Municipal | |
Part 5: Replacement Doulton Ceramic and Specialty Drinking Water Filter Cartridges | ||||
PF00C5 | 5 Micron Doulton Pre-Filter with threaded short mount. Spun polypropylene. | |||
PF00C1 | 1 Micron Pre-Filter with threaded short mount. Spun polypropylene. | |||
IUCICP | Doulton Cleanable Imperial Ultracarb Ceramic Candle- two stage (Organics, VOC's) for ICP Nimrod Counter Top Drinking Water Filters | |||
CSTY20 | W9120562 | Doulton Sterasyl Ceramic, 10 inch. hollow, self sterilizing, cleanable drinking water filter cartridge candle | ||
CP0500 | Doulton Cleanable 5 micron pre-filter candle for HIP,HIS,HCP series housings | |||
CS0650 | Doulton Cleanable Super Sterasyl 6.5" Ceramic Candle- two stage (Organics, VOC's) for SSMINI Gravity Systems - also fits Berkey systems. | |||
CS0700 | W9121207 | Doulton Cleanable Super Sterasyl 7" Ceramic Candle- two stage (Organics, VOC's) for Gravity Systems - also fits Berkey systems. | ||
CS07FL | W9120133 | Doulton Cleanable Super Sterasyl 7x2.75" Ceramic Candle for Fluoride reduction in Gravity Systems. | ||
CS07HM | W9121214 W9121215 |
Doulton Cleanable Ultra Sterasyl ATC 7" Ceramic Candle- three stage drinking water filter cartridge (Organics, VOC's, lead and heavy metal) for Gravity Systems. Looks the same as a CS0700, removal properties of a CU1200. - also fits Berkey systems. | ||
CH1200 | W9124020 | Doulton Cleanable Chlorasyl Ceramic Candle - three stage (Organics, VOC's,) for HCP / HIP / HIS series housings | ||
CS1200 | W9121750 | Doulton Cleanable Super Sterasyl Ceramic Candle- two stage (Organics, VOC's) for HIP / HIS series housings - suitable for low pressure applications. | ||
CU1200 | W9123006 W9123053 |
Doulton Cleanable Ultracarb Ceramic Candle - three stage (Organics, VOC's, Lead) for HCP / HIP / HIS / HCS series housings. Not suitable for gravity systems see- CS07HM | ||
CU12SI | W9123019 W9125010? |
Doulton Cleanable Ultracarb Ceramic Candle - four stage (Organics, VOC's, Lead, Limescale) for HCP / HIP / HIS / HCS series housings. Not suitable for gravity systems see- CS07HM | ||
DU1200 | Doulton Cleanable Ultracarb Ceramic Candle - three stage (Organics, VOC's, Lead) for Dynamic Stainless Steel counter top and under counter purifiers | |||
FU1200 | W9223021 | Doulton Cleanable Ultracarb Ceramic Candle - three stage (Organics, VOC's, Lead) Direct replacement for Franke M-15. Mount has 5 coarse threads and 2 small o-rings (one is embedded in the threads and the other at the base of the thread stem) | ||
MG1200 | 10 inch, Megacarb Ceramic Candle. This is a black carbon infused ceramic candle (Carbosyl) merged with an Ultracarb. This ceramic is no longer being manufactured. We still have a limited stock. Contact for details. | |||
PF00C5 | 2" x 10" 5 Micron cleanable Doulton Water Filter Ceramic Pre-Filter. Fits HCP / HIP / HIS / HCS housings. | |||
CA1500 | General Purpose 10" Granular Activated Carbon GAC for HIP/HCP/HIS, Doulton pressure systems | |||
DA1500 | General Purpose 10" Granular Activated Carbon GAC for HI, HC, Dynamic Stainless Steel Water Filters | |||
CM1500 | W9142010 | H2O Disposable Cartridge - Carbon Block High Volume VOC for HIP/HCP/HIS series Doulton housings | ||
CR2500 | H2O Disposable Cartridge - VOC/Heavy Metals Lead for HIP/HCP/HIS series Doulton housings | |||

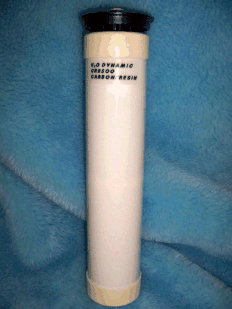

DR2500 | H2O Disposable Cartridge - VOC/Heavy Metals Lead for Dynamic Stainless Steel counter top and under counter water filters | |||
AR3000 | H2O Disposable Cartridge - Arsenic water filter for HIP/HCP/HIS series housings | |||
LS1200 | 10 inch Limescale filter for HIP/HCP/HIS series housings. | |||
NI3200 | H2O Disposable Cartridge - Nitrate water filter for HIP/HCP/HIS series housings | |||
FL3500 | W9125030 | H2O Disposable Cartridge - Fluoride water filter for HIP/HCP/HIS series housings | ||
SLM100 | Doulton Cleanable Sterasyl Ceramic water filter candle - SlimLine 2.0" series -fits ST10PR and other manufacturers housings. Open at Both Ends (OBE) | |||
SLM300 | W9223002 | Doulton Cleanable UltraCarb Ceramic water filter candle- SlimLine 2.0" series -fits ST10PR and other manufacturers housings. Open at Both Ends (OBE) | ||
IMP100 | W9220406 | Doulton Cleanable Sterasyl Ceramic water filter candle- Imperial 9.75 X 2.75" series -fits ST10PR and other manufacturers housings. Open One End (OOE) | ||
IMP300 | W9223006 | Doulton Cleanable UltraCarb Ceramic water filter candle- Imperial 9.75 X 2.75" series -fits ST10PR and other manufacturers housings. Open One End (OOE) | ||
IMP500 | W9121001 | Doulton Cleanable Super Sterasyl Ceramic water filter candle- Imperial 5 X 2.75" long mount for gravity water filters | ||
IMP700 | W9121302 | Doulton Cleanable Super Sterasyl Ceramic water filter candle- Imperial 7" x 2.75"series long mount for Gravity Filter Systems- also fits other manufacturers housings including Berkey filters. | ||
Part 6: Replacement Drinking Water Filter Cartridges for other Manufacturer Housings | ||||
CM2005 | 5 Micron, 20 inch. Carbon Block Filter for 20 inch full flow housings, also fits other manufacturers housings. | |||
PF1005 | ||||
PF1W05 | ||||
PF10DG | ||||
PF2001 | 20 inch x 4.5 inch. 1 micron spun polypropylene pre- filter for 20 inch. full flow housing, also fits other manufacturers housings. | |||
PF2005 | 20 inch x 4.5 inch. 5 micron pre- filter for 20in. Big White housing, also fits other manufacturers housings. Available in spun polypropylene or pleated paper. Call for prices. | |||
PF20W5 | 20 inch. x 4.5 inch. Washable pleated 5 micron pre- filter for 20in. full flow housings | |||
PF20DG | 20 inch. x 4.5 inch. Dual Grade 20 to 5 Micron Pre Filter - Spun Polypropylene. Fits BWH-20 | |||
Shower Systems for Chlorine Reduction | ||||
SHWR10 | W9310020 | Shower Filter with KDF Media- Mounts to Existing Plumbing, Compatible with Special Massage Heads | ||
SHWR30 | SHWR10 Shower Filter with SHHD25 Massage Shower Head | |||
SHHD25 | 2.5 gpm Deluxe Massage Shower Head | |||
Part 7: Individual Drinking Water Filter Components and Accessories | ||||
BAVA12 | 1/2" NPT Inline Ball Valve. Fits any NPT fitting and is included in the HIS series Undercounter Doulton water filters.. | |||
DV3003 | W2391068 | Diverter Valve - For Doulton HCP101 Counter Top with hose | ||
DV30B3 | Diverter Valve - Ball Type for HCP and SCT | |||
DDV303 | Dual Diverter Valve - fits HCS
Stainless Steel Counter Top (no hose, hose sold separately) Limited inventory. Item is discontinued |
|||
DYN003 | Diverter Valve for Dynamic Stainless Steel Counter Top water filters (no hose, hose sold separately) | |||
F-FM02 | Faucet - Long Neck with 3/8 inch hose push fit connector. | |||
FAUDES | Designer Faucet. Available in multiple colours and finishes. State your finish choice when ordering May be ordered in place of standard faucet. Add $60 Cdn. | |||
HIP100 | W9330059 | HIP Series Water Filter Housing - Under Counter complete with mounting bracket | ||
HIS100 | W9320007 | HIS Series Stainless Steel Water Filter Housing 3/8 I/O - Under Counter complete with mounting bracket | ||
HOSE38 | Hose 3/8" - rigid wall for under counter systems. Sold by the foot | |||
HOSECT | Hoses 3/8" - soft wall for countertop systems. Sold by the foot. | |||
HOSE14 | 1/4" Hose for plumbing refrigerators, humidifiers, and Dynamic Under Counter Stainless Steel Water Filters. For use with John Guest fittings. Sold by the foot. | |||
HOSEDU | Duplex hose for use with Dynamic Stainless Steel Countertop Water Filters | |||
MKU100 | Mounting Hardware Kit - for all HIP/HIS series undercounter systems. Includes; faucet, saddle valve, 3/8 Hose. Note: "system purchases" already come with this kit. | |||
MTBRAC | Mounting Bracket only for HIP series undercounter housings | |||
ORING-HI | O-Ring for HIP series Under Counter (UT) water filter housings | |||
ORING-HC | O-Ring for HCP series Counter Top (CT) water filter housings | |||
PR4004 | Pressure Regulator, Brass, Heavy Duty. | |||
PLUG | Rubber Plug for GSS series Gravity Water Filters | |||
SPIG-G
SPIGOT |
W2313069 | Faucet outflow spigot for GSS gravity series | ||
SPGPL | Plastic J Spigot for HCP/HCS C/T filters | |||
SPGCH | Chrome J Spigot for HCP/HCS C/T filters | |||
ST10PR | Standard #10 Housing. Accepts Doulton Slimline, Imperial and other manufacture cartridges. Specify 1/2 inch or 3/4 inch Input / Output fittings when ordering | |||
SV2002 | Saddle Valve, Brass and Steel, Heavy Duty with John Guest 3/8in hose fitting | |||
WASH-SS | Flat Washer for HIS/HCS Stainless Steel Filter housings | |||
WRENCH | W2313080 | HIP or HCP Wrench | ||
WRENBW | BWH-10 or 20 Wrench | |||
Part 8: | John Guest Hose Fittings | |||
JG5005 | John Guest Push Fit Connector 3/8" hose-7/16 straight stock threads | |||
JGT38T | John Guest Push Fit Connector "T". Three X 3/8"H | |||
JGREDU | John Guest 1/4 hose to 3/8" fitting | |||
JGREUN | John Guest 3/8" hose to 1/4" hose Reducing Union | |||
JGBAVA | John Guest 3/8" hose In Line Ball Valve Shut Off | |||
JGANST | John Guest 1/2" supply line "T" with Ball Valve and 3/8" rigid wall hose push fit connector. |
For more information on health hazards such as chlorine and other drinking water contaminants please read through our "Health Topics" pages or review many of the information sites listed on our
"Research Page".
