CU1200 UltraCarb Doulton Ceramic Drinking Water Filter Candle / Element / Cartridges: Doulton UltraCarb ceramic drinking water filter cartridges / candles are three stage ceramic cleanable filtration cartridges, designed to remove suspended solids, pathogenic bacteria, chlorine, organic chemicals, hydrogen sulphide, heavy metals and lead in drinking water. In addition they will improve taste and reduce odours. This style of ceramic drinking water cartridge is available to fit not only Doulton water filter housings but a host of other manufacturers' drinking water filter housings. In the product catalogue a 'D' has been placed in front of the part numbers that fit Dynamic Stainless Steel counter top and under counter drinking water purifiers and an F for Franke drinking water filters.
If you are not sure of a part number replacement send us an email with the dimensions of your current filter cartridge along with a picture and we will ensure you receive the correct replacement.

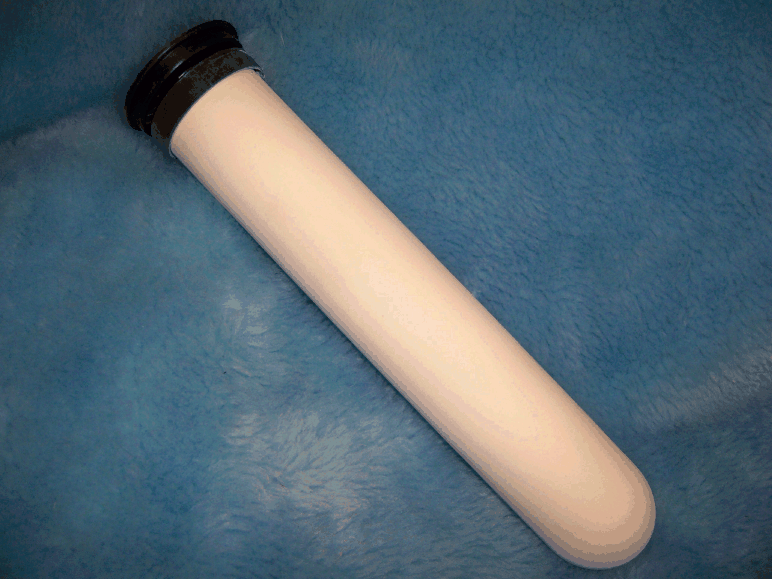

|Doulton CU1200 (10in) UltraCarb Ceramic Water Filter Cartridge with a Dynamic Mount||Cutaway showing Bacteria Trapped on Outer Wall of the Doulton Ceramic||Simple Cleaning|
|General Specifications For Doulton Ceramic Ultracarb Drinking Water Filter Cartridge:|
|Maximum Working Pressure||125 PSI|
|Maximum Working Temperature||100 F|
|Minimum Working Temperature||40 F|
|Recommended Flow Rate||.3-.5 GPM|
|Rated Life (stand alone)||600 USG|
|Rated Life (Multiple Systems)||See System Specifications|
CU1200 Series Doulton UltraCarb Ceramic Drinking Water
Application Guide and Contaminant Removal Chart for this drinking water filter cartridge
P= Purification >99% R= Reduction> 95% F= Effective Filtration>90%
|Contaminants||Removal||General Description - Rated life 600 USG / 2300 Litres|
drinking water filter cartridge is designed for use with well, surface or Chlorinated Municipal water and distribution systems constructed with soldered copper plumbing, galvanized, PVC, or black iron plumbing. This
cartridge is also effective for homes which are fed by lead lined or asbestos concrete reinforced water supply mains in their city.
This ceramic drinking water filter cartridge provides: 100% rejection of Bacteria, Cysts, absolute depth filtration >.9 micron and effective depth filtration of particulate >.5 micron (dirt, asbestos, iron etc), excellent improvement in Taste and Odour, plus the added bonus of Chemical, Lead and Heavy Metal Rejection.
Though not reaching purification standards by itself, this cartridge still produces outstanding rejection of Chlorine (>97%) and Lead (>97%) at its rated life of 600 gallons. Both of these statistics exceed the NSF certification requirements under NSF International Standard 53. The 600 USG gallon rating is to ensure that the internal extruded carbon core matrix and Zeolite ion reduction medium remains effective under the worst possible contaminant conditions.This ceramic drinking water filter cartridge is easily cleaned and requires no tools to service.
|Particulate Efficiency (Dirt etc.)||Rating|
|Absolute filtration rating||Defined as >99.999%||0.9 micron|
|Nominal or Effective filtration rating||99.9%||0.5-0.8 micron|
|% Bacteria removal||E. coli||>99.99%|
|% live Cyst removal||Cryptosporidium||100%|
Doulton Ceramic Drinking Water Filter Cartridges hold Certification, Accreditation, or Membership with the following Agencies:
|ISO 9002 Quality Standard|
|National Sanitation Foundation standards 42 and 53|
|Environmental Protection Agency (EPA)|
|Water Quality Association|
|Department of Health (Toronto, Canada)|
|Spectrum Labs (Minneapolis, USA)|
|Water Research Council (UK)|
|British 5750 Quality Standard|
|England's Water Research council (WRc) Performance Standards|
|California Department of Health|
|Over 50 Independent Laboratories Worldwide|
The following specific removal efficiency testing reports are available: Cryptosporidium Removal, Bacterial (E. Coli) Removal, Particulate Reduction, Lead Reduction, Cyst and Turbidity Reduction, Chlorine Reduction.
